Description
(Confirming to EN-837-3 & IS-3624)
| Nominal size | Ø 50, 63, 100, 115, 150, 200, 250 & 300 mm |
| Accuracy | :±1% of FS (From 1 to 70 bar) ±1.6% of FS (≥ 100 bar) (±1% Optional) ±1.6% of FS (For Vacuum) |
| Case & Bezel | SS 304 Case with Snap Action bayonet lock type bezel (SS 316 Optional) SS 304 Case with Crimped Bezel (Hermetically Sealed) (For Ø 50, 63 & 100 mm Optional) |
| Ingress Protection | IP 65 as per EN 60 529 or IS/IEC 60 529 IP 68 as per IS/IEC 60 529 for Ø 100 & 150 mm-Optional |
| Pressure element — Bourdon Tube | SS 316 / SS 316L / SS 316Ti (Monel 400 Optional) (< 100 bar ’C’ shape / ≥ 100 bar helical shape) |
| Over pressure limit | :≤ 100 bar – 125% of FS > 100 bar < 600 bar – 115% of FS > 600 bar < 1600 bar – 110% of FS |
| Movement | SS 304 (SS 316 optional) |
| Socket | SS 304 / SS 316 / SS 316L (Monel 400 Optional) |
| Dial | Aluminium —Pre-coated White with black marking |
| Pointer | Aluminium —Black Finish Center / Micro Zero Adjustment |
| Window | 4 mm thick Toughened Glass (Safety / Shatter Proof Optional)Transparent Acrylic Window for Hermetically Sealed Glycerin Filled Case |
| Joints | Argon welded |
| Sealing gasket | Neoprene Rubber (EPDM Optional) Nitrile Rubber for Glycerin Filled Case |
| Blow out protection | Neoprene Rubber (EPDM Optional) For Ø 50 & 63 mm : On Top of Case For ≥ Ø 100 mm : On Back of Case |
| Pressure relief | Top of Case with Vent Valve (On Request) |

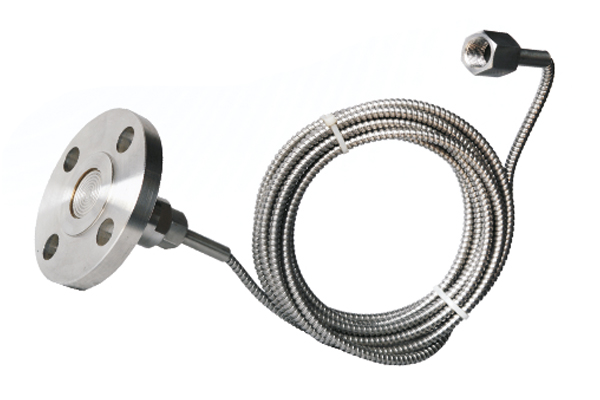

| Sealed Unit | Seal Body : SS 316 (Standard) / SS 316L Diaphragm : SS 316L (Standard) / Hastealloy C / (Welded to Monel / Tantalum / Nickle (200/400) seal Body) / PTFE Coating protection / Other on request Transmitting Fluid : Silicon Oil (Standard) / Halocarbon / Food Grade Glycerin/Vegetable Oil etc. |
| Process Connection | 1/2” / 3/4” / 1”/ 1 ”/ 2” BSP (Male) with Flush Diaphragm 1 ” / 2” / 2 ” Triclover 1 ” / 2” / 2 ” SMS 1/2” / 3/4” / 1” / 1 ” / 2” / 3” Flanged with Flush Diaphragm Sandwich Flange (Cell Type) With Capillary ExtensionFlanged type Extended Diaphragm Homogenizer without Flange or With 7/8” thick 2 bolt flange Special connection for Pulp & Paper Industries Saddle flange type to be welded on pipe |
| Permissible temperature | Ambient : -25’C to 65’CProcess : Maximum 1500C (Direct Reading) Maximum 3500C (Remote Reading) |
| Type of mounting | Bottom Connection Direct Mounting Back Connection Direct Mounting Bottom Connection Surface Mounting with Capillary Extension Back Connection Panel Mounting with Capillary Extension Back Connection Bracket Mounting with Capillary Extension |
| Pressure range | 30” Hg … 0 … 60 bar For Homogenizer seals 400 bar Standard (600, 1000 & 1600 bar Optional) |
| Optional Available features | • Liquid Fillable Case / Glycerin (99.7%) Filled Case • Solid front case (Safety Pattern) for 100 & 150 mm • External Zero Adj. for ≥ Ø 100 mm • • Electrical Contact for 100 & 150 mm • Cooling Tower Assembly • Over Range Protection above pressure • Range Phenolic Solid Front safety design case for 115 mm |
